180 Articulated Wheel Loader

Model:MK180 Articulated Wheel Loader
Machine weight :2100kg
Engine : EPA and Euro 5 ,Yanmar, Kubota, Perkins engines 17.8kw
Max Loading:800kg
Bucket:0.3cbm
Dump height (mm)2445
Support Telescopic arm.

Send Inquiry Download

Product Description

180 Articulated Wheel Loader manufacturer and supplier

[Shandong Mingko Industry Corporation] is a leading 180 Articulated Wheel Loader manufacturer and supplier, trusted by construction, mining, and logistics leaders worldwide. With a 50,000+ sqm factory, 15+ years of global expertise, and certifications including ISO 9001, CE, and EPA, we deliver high-performance, customizable loaders starting at MOQ 1 unit. Our end-to-end solutions—from design to doorstep delivery—empower businesses to tackle complex projects with unmatched efficiency.

product-1-1

1. 180 Articulated Wheel Loader: Built for Tough Tasks

The 180 Articulated Wheel Loader is engineered to excel in confined spaces and heavy-duty applications, from moving 3-ton gravel loads on construction sites to handling agricultural feed in sprawling farms. Featuring a turbocharged 75 kW engine, 35° articulation angle, and CE/EPA-compliant design, this machine reduces fuel costs by 15% while boosting productivity. Whether you’re a municipal contractor clearing urban snow or a mining operator in narrow tunnels, the 180’s 2.8 m³ bucket capacity and 8,200 kg operating weight make it a cost-effective, agile workhorse.

2. Why Partner with Shandong Mingko?

🌟 Global Reach: Trusted by 1,200+ clients across 30+ countries.
🌟 End-to-End Support: Custom designs, duty/tax assistance, and seamless logistics.
🌟 After-Sales Excellence: Free 12-month warranty, video-guided repairs, and 24/7 multilingual support.
🌟 Cost-Effective: Factory-direct pricing with no intermediaries.

product-1-1

3. Key Specifications

MK180 Articulated Wheel Loader
Rated Load：800kg	Engine model：3M78-23E
Bucket Capacity：0.3m³	Type：Water cooled
Forklift height(Hinge pin height):3525mm	Rated Power：17.75kw
Lifting Height of main boom:3300mm	Rated Speed：2600r/min
Dumping Height of main boom( dumping angle 45°):2445mm	Max. Torque：98.7N.m
Dumping reach of main boom：960mm	Speed at Max. Torque：1320r/min
Max. Loading capacity of main boom：1000kg	Number of cylinders：3
Lifting height of small boom：3900mm	Bore & stroke：88*90
Dumping height of small boom (dumping angle 45°)：3115mm	displacement：1.642L
Dumping reach of small boom：1600mm	Rated fuel consumption：≤230
Max. Loading capacity of small boom：600kg	Pump Pressure：28MPa
Max. Speed(F1/R1)：12km/h	Axle：bevel gear reduction
Max. Traction force：16.66KN	Main drive reduction ratio：3.75
Max.Breakout Force：15KN	Driving：4 wheel drive
Digging Deep：65mm	Tire：10.0/75-15.3
Max Gradeability：25°	Type：All hydraulic steering
Max. Turning angle：35°	System Pressure：16
Overall length (bucket on ground position)：3820mm	Steering pump type：Gear pump
Overall width：1260mm	Steering diameter：63
Overall Height：2310mm	Stroke：171
Wheel base：1507mm	quantity：1
Tread：890mm	Type：Disc brake
Min. Ground clearance：220mm	Brake drum diameter：300
Net weight：2100kg

4. Why the 180 Outperforms Competitors

✅ Durability: Reinforced steel frame withstands 8,000+ hours in harsh environments.
✅ Fuel Efficiency: Smart hydraulics cut consumption by 15%, lowering operational costs.
✅ Customization: Attach snowplows, pallet forks, or grapples (MOQ 1 unit) for specialized tasks.
✅ Low Maintenance: Centralized lubrication and remote diagnostics minimize downtime.

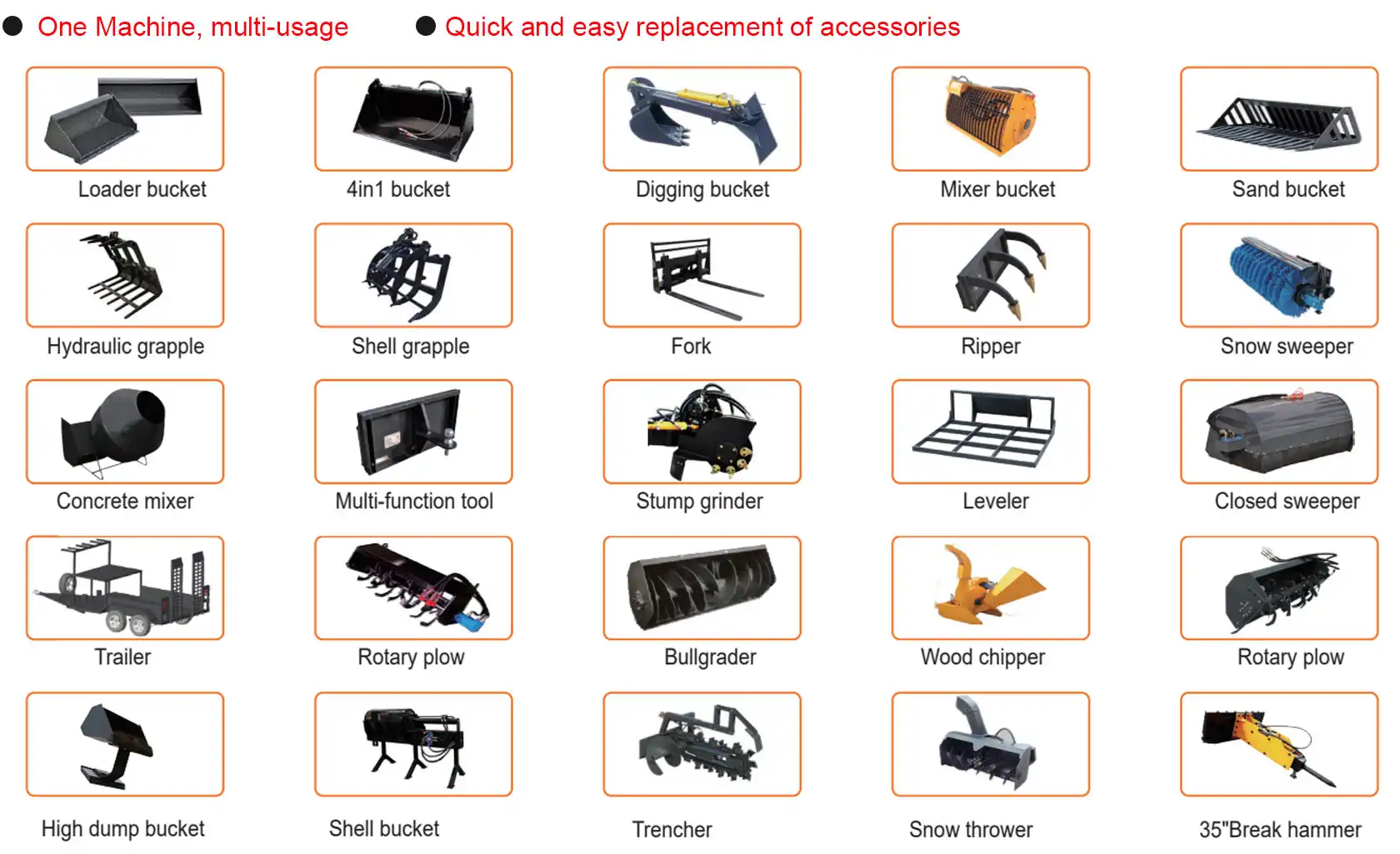

5. Attachments for Every Challenge

Tailor your 180 Articulated Wheel Loader to industry-specific needs:

product-1-1

6. Safety Innovations You Can Trust

360° Camera System: Eliminate blind spots in congested worksites.

Slope Assist Technology: Auto-braking prevents rollbacks on inclines up to 25°.

Ergonomic Cabin: Air suspension seats, intuitive controls, and noise levels below 75 dB.

Emergency Stop: Instant shutdown during critical events.

7. Where the 180 Shines

Construction Sites: Move 50+ tons of materials daily with precision.

Mining Operations: Navigate narrow tunnels with agile steering.

Agricultural Storage: Load/unload feed, fertilizer, or harvests efficiently.

Municipal Projects: Manage waste, snow, or urban cleanup in tight spaces.

product-1-1

8. Secure Packaging & Stress-Free Shipping

Every 180 Articulated Wheel Loader is disassembled, rust-proofed, and shipped in steel-reinforced crates. We handle customs paperwork, certifications, and last-mile delivery—perfect for buyers new to global procurement.

product-1-1
