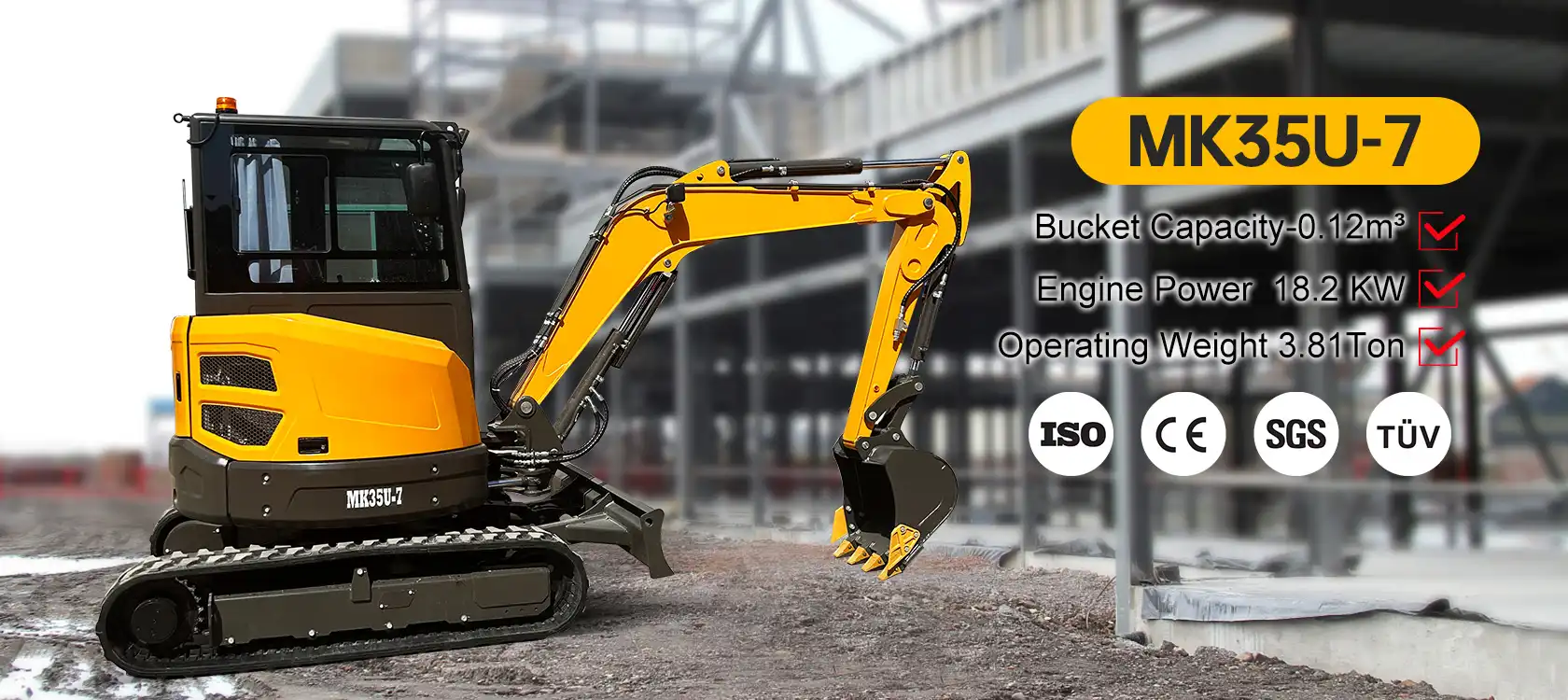

3.5 T Digger
Operating weight :3810kg
Engine :Euro 5 EPA Kubota D1703 18.2KW
Speed:Double speed
Valve:Hydaulic Pilot valve control
Bucket:0.12CBM
Max Digging Depth:3208mm
Max Digging Height:4805mm
Tail:Zero Turn
- Product Description
Your Reliable 3.5 T Digger Manufacturer & Supplier
Shandong Mingko Industry Corporation specializes in manufacturing and supplying high-performance 3.5 T Diggers that cater to the needs of large construction companies, small and medium-sized businesses, and individual contractors. Our product stands out for its durability, efficiency, and versatility, making it the ideal choice for excavation and earth-moving tasks.
1. Introduction
A 3.5 T Digger is an essential piece of construction equipment that provides an efficient and cost-effective solution for excavation and material handling. Whether you are managing large-scale infrastructure projects or working on small to medium-sized construction sites, our product offers the perfect balance between power, fuel efficiency, and ease of operation.
Built with advanced hydraulic systems and high-quality components, this excavator ensures smooth operation, reduced fuel consumption, and long-term durability. Its compact design allows easy maneuverability in tight spaces while maintaining superior digging power.
2. Why Choose Us?
Large Factory Area: 50,000 sq meters production facility
Professional Design Team: Customization available, MOQ 1 unit
15+ Years of Foreign Trade Experience: Ensuring smooth transactions
International Certifications: EPA, CE, ISO 9001 certified
Dedicated Support: 24/7 pre-sales & after-sales service
Customs Clearance Assistance: We help buyers without import experience
3. How Can Our Excavators Help You Gain Benefits?
Increased Work Efficiency: Our 3.5 T Digger is equipped with a high-power engine and a precision hydraulic system, ensuring faster excavation and reduced project timelines.
Cost Savings: Thanks to its energy-efficient design, it lowers fuel consumption and maintenance costs, helping businesses save money in the long run.
Versatile Applications: Suitable for a wide range of tasks, including trenching, foundation digging, landscaping, and demolition.
Easy Maintenance & Durability: Designed for long-lasting performance, our excavator features high-quality components that withstand heavy-duty use.
Enhanced Operator Comfort: The ergonomic cabin, intuitive controls, and safety features ensure ease of operation and reduce operator fatigue.
4. Parameters
| ENGINE | |
| Emission Standard:Euro 5,EPA4 | Number of cylinder:3 |
| Make /Model:KUBOTA /D1703 | Max.torque:97.4N.m/1500rpm |
| Power /Rotation speed:18.2kw(25HP)@2200rpm | Displacement :1.642L |
| Type : in-line,water cooled, 4-stroke ,mechanical pump, normally aspirated | |
| TRACK DRIVING SYSTEM | |
| Maximum Travel speed(High/low) :4.4/2.4km/h | Carrier roller(Each side):1 |
| Width of steeltrackshoe:300mm | Supporting roller(Each side):4 |
| PERFORMANCE PARAMETER | |
| Standard Bucket capacity:0.12m³ | Boom length:2535mm |
| Swing speed:12rpm | Arm length:1400mm |
| Maximum Grade ability:58%(30°) | Fuel tank capacity :40L |
| Ground pressure :32Kpa | Hydraulic oil tank capacity:44L |
| Maximum Bucket digging force:30.4KN | Engine oit capacity :7L |
| Maximum Arm digging force:18.2KN | Radiator capacity:3.8L |
| Hydraulic system pressure:22.5Mpa | Final drive:2*0.7L |
| Machine weight:3810kg | |
| MACHINE SIZE | |
| Overall dimension (L*W*H):4915mm*1720mm*2525mm | Minimum Ground clearance:295mm |
| Axle base(Track length on ground):1670mm | Swing radius at tail:860mm |
| Length of rubber track:2154mm | Swing radius at front:2538mm |
| Track gauge:1420mm | Height of blade:350mm |
| WORKING RANGE | |
| Maximum Digging height:4800mm | Minimum swing radius:2530mm |
| Maximum Dumping height:3406mm | Max.heightwhen min swing radius:3655mm |
| Maximum Digging depth:3208mm | Maximum Lifting height of blade:365mm |
| Maximum Vertical digging depth:2957mm | Maximum Cutting depth of blade:385mm |
| Maximum Digging distance(working radius):5480mm | Boom swing angle(Left/Right):55°/65° |
| Maximum digging distance (on ground).5359mm | |

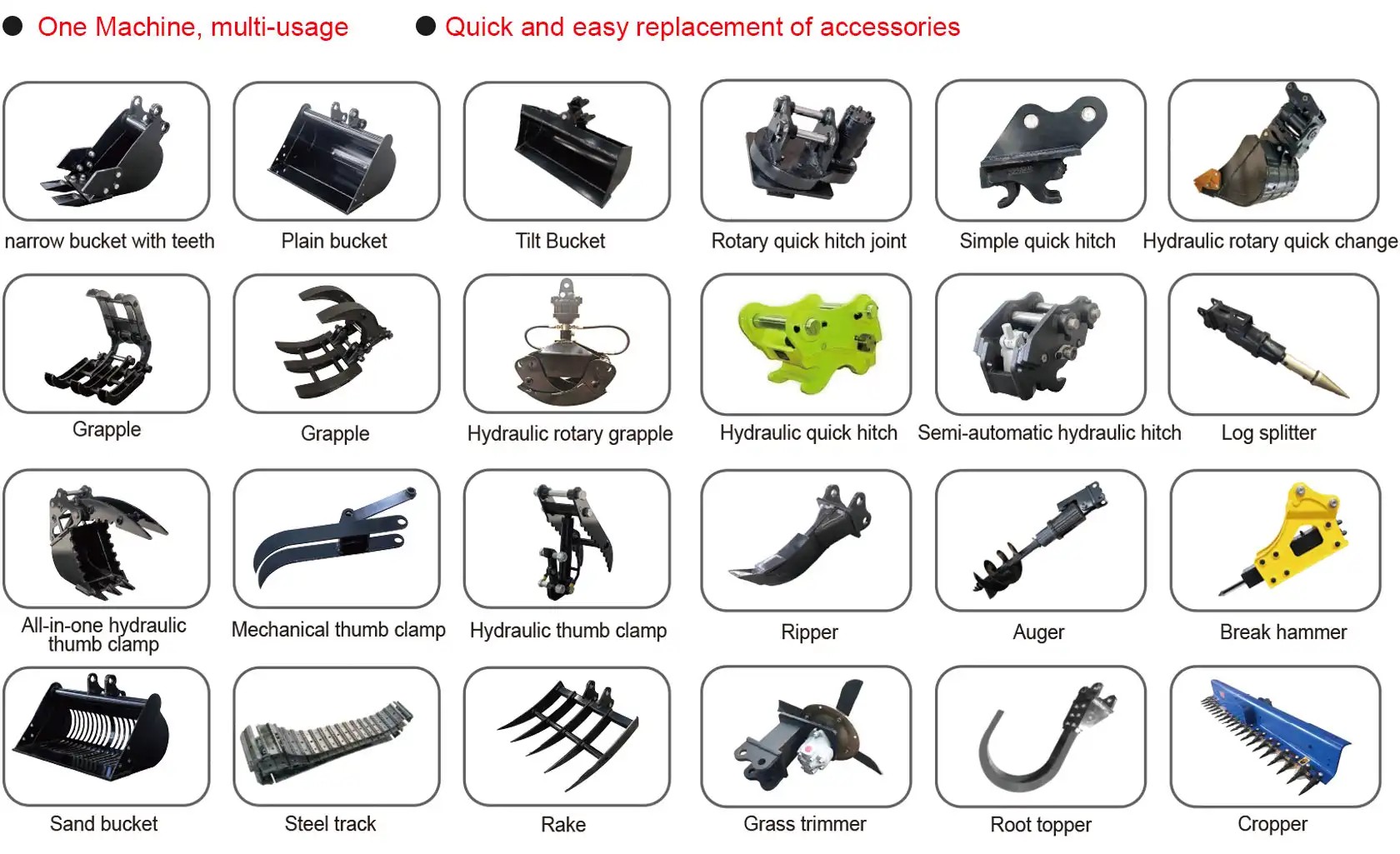

5. Common Attachments
6. Working Scene
Our 3.5 T Digger is widely used in various applications, including:
Urban construction for foundation digging and trenching
Road maintenance for excavation and clearing
Agricultural projects for land preparation
Landscaping for grading and material moving
Pipeline installation for trench excavation
7. Certificates
8. Packaging & Shipping
Secure Packaging: Standard export packaging with protective materials
Shipping Options: Available via sea, land, and air freight
Delivery Time: Fast dispatch, with estimated arrival based on location
9. FAQ
Q1: What is the warranty period for your product?
A1: We offer a 12-month warranty, along with free accessories for replacement.
Q2: Do you provide machine installation guidance?
A2: Yes, we offer free video call installation and operation guidance.
Q3: Can I customize the digger according to my needs?
A3: Yes! We support customization options, including attachments and specifications.
Q4: What if I have no import experience?
A4: No problem! Our team assists with customs clearance to ensure a smooth transaction.
Q5: How do I place an order?
A5: Simply contact us, and our sales team will guide you through the process.
